Card Reader-Writer Memory Product Memory Card Adapter


Industrial and Military Grade CFast Card





Amtron supplies the following genuine industrial CFast memory cards to industrial, medical, and military customers.


Amtron APRO SMART Modular




        National Stock Number List






Amtron Industrial Grade CFast Cards



AK Series

SLC

8GB - 64GB

pSLC

16GB - 128GB

MLC

32GB - 256GB

3D TLC

64GB - 512GB






Amtron
Industrial CFast Memory Card

AK Series





Features   [ Datasheet ]      [ Warranty ]

- SATA 3.2 interface
- High Speed:  Read 550 MB/sec max. , Write 480 MB/sec max.
- MTBF> 3,000,000 hours
- Support SMART
- RoHS compliant
- Vibration: 20G; Shock: 1500G
- Optional thermal sensor and conformal coating are available upon request














SLC

8GB - 64GB

0C to +70C -40C to +85C


pSLC

16GB - 128GB

0C to +70C -40C to +85C


MLC

32GB - 256GB

0C to +70C -40C to +85C


3D TLC

64GB - 512GB

0C to +70C -40C to +85C




Price: Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time.


        SLC    [ 0C to +70C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    8GB CFA-AK008GBC
    16GB CFA-AK016GBC
30GB CFA-AK030GBC 32GB CFA-AK032GBC
60GB CFA-AK060GBC 64GB CFA-AK064GBC

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        SLC    [ -40C to +85C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    8GB CFA-AK008GBI
    16GB CFA-AK016GBI
30GB CFA-AK030GBI 32GB CFA-AK032GBI
60GB CFA-AK060GBI 64GB CFA-AK064GBI

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        pSLC    [ 0C to +70C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    16GB CFA-AK016GBP
30GB CFA-AK030GBP 32GB CFA-AK032GBP
60GB CFA-AK060GBP 64GB CFA-AK064GBP
120GB CFA-AK120GBP 128GB CFA-AK128GBP

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        pSLC    [ -40C to +85C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    16GB CFA-AK016GBF
30GB CFA-AK030GBF 32GB CFA-AK032GBF
60GB CFA-AK060GBF 64GB CFA-AK064GBF
120GB CFA-AK120GBF 128GB CFA-AK128GBF

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.




Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.




        MLC    [ 0C to +70C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    32GB CFA-AK032GBK
60GB CFA-AK060GBK 64GB CFA-AK064GBK
120GB CFA-AK120GBK 128GB CFA-AK128GBK
240GB CFA-AK240GBK 256GB CFA-AK256GBK

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        MLC    [ -40C to +85C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    32GB CFA-AK032GBM
60GB CFA-AK060GBM 64GB CFA-AK064GBM
120GB CFA-AK120GBM 128GB CFA-AK128GBM
240GB CFA-AK240GBM 256GB CFA-AK256GBM

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        3D TLC    [ 0C to +70C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    64GB CFA-AK064GBA
120GB CFA-AK120GBA 128GB CFA-AK128GBA
240GB CFA-AK240GBA 256GB CFA-AK256GBA
480GB CFA-AK480GBA 512GB CFA-AK512GBA

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.


        3D TLC    [ -40C to +85C ]

Partial Capacity * Full Capacity
Capacity Part Number Capacity Part Number
    64GB CFA-AK064GBB
120GB CFA-AK120GBB 128GB CFA-AK128GBB
240GB CFA-AK240GBB 256GB CFA-AK256GBB
480GB CFA-AK480GBB 512GB CFA-AK512GBB

* In order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP) technology to optimize the wear leveling (WL), garbage collection (GC), bad block management (BBM) operations. This method reduces the data storage space, but increases the CFast card life.




Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.







APRO
Industrial Grade CFast Cards



HERMES-I Series

SLC, 4GB - 64GB

PHANES-K Series

SLC, 8GB - 32GB

PHANES-K Series

aSLC, 16GB - 64GB

HERMES-J Series

MLC, 4GB - 256GB

MUSE-D Series

MLC, 8GB - 128GB

PHANES-K Series

MLC, 32GB - 128GB






APRO Industrial Grade SATA II CFast Card

HERMES-I
series

Single-level cell (SLC) NAND flash memory

[ Specification ]   [ Datasheet ]


APRO
HERMES-I series SLC industrial SATA III CFast cards are available from 4GB to 64GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).

Part Number List


Capacity SATA III CFast Card - SLC
Plastic Casing, 0C to +70C
SATA III CFast Card - SLC
Plastic Casing,
-40C to +85C
4GB SPCFA004G-JICTC-(T)* WPCFA004G-JIITI-(T)*
8GB SPCFA008G-JICTC-(T)* WPCFA008G-JIITI-(T)*
16GB SPCFA016G-JICTC-(T)* WPCFA016G-JIITI-(T)*
32GB SPCFA032G-JICTC-(T)* WPCFA032G-JIITI-(T)*
64GB SPCFA064G-JICTC-(T)* WPCFA064G-JIITI-(T)*

Capacity SATA III CFast Card - SLC
Metal
Casing, 0C to +70C
SATA III CFast Card - SLC
Metal Casing,
-40C to +85C
4GB SRCFA004G-JICTC-(T)* WRCFA004G-JIITI-(T)*
8GB SRCFA008G-JICTC-(T)* WRCFA008G-JIITI-(T)*
16GB SRCFA016G-JICTC-(T)* WRCFA016G-JIITI-(T)*
32GB SRCFA032G-JICTC-(T)* WRCFA032G-JIITI-(T)*
64GB SRCFA064G-JICTC-(T)* WRCFA064G-JIITI-(T)*


T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






APRO Industrial Grade SATA III CFast Card

PHANES-K
series

Single-level cell (SLC) NAND flash memory

[ Specification ]   [ Datasheet ]


APRO
PHANES-K series SLC industrial SATA III CFast cards are available from 8GB to 32GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).


Part Number List


Capacity SATA III CFast Card - SLC
Plastic Casing, 0C to +70C
SATA III CFast Card - SLC
Plastic Casing,
-40C to +85C
8GB SPCFA008G-PKCTC-(T)* WPCFA008G-PKITI-(T)*
16GB SPCFA008G-PKCTC-(T)* WPCFA016G-PKITI-(T)*
32GB SPCFA008G-PKCTC-(T)* WPCFA032G-PKITI-(T)*

Capacity SATA III CFast Card - SLC
Metal
Casing, 0C to +70C
SATA III CFast Card - SLC
Metal Casing,
-40C to +85C
8GB SRCFA008G-PKCTC-(T)* WRCFA008G-PKITI-(T)*
16GB SRCFA008G-PKCTC-(T)* WRCFA016G-PKITI-(T)*
32GB SRCFA008G-PKCTC-(T)* WRCFA032G-PKITI-(T)*


*
T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






APRO Industrial Grade SATA III CFast Card

PHANES-K
series

aSLC
NAND flash memory

[ Specification ]   [ Datasheet ]


APRO
PHANES-K series aSLC industrial SATA III CFast cards are available from 16GB to 64GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).


Part Number List


Capacity SATA III CFast Card - aSLC
Plastic Casing, 0C to +70C
SATA III CFast Card - aSLC
Plastic Casing,
-40C to +85C
16GB SPCFA016G-PKCTMAS-(T) * WPCFA016G-PKCTMAS-(T)C *
32GB SPCFA032G-PKCTMAS-(T) * WPCFA032G-PKCTMAS-(T)C *
64GB SPCFA064G-PKCTMAS-(T) * WPCFA064G-PKCTMAS-(T)C *

Capacity SATA III CFast Card - aSLC
Metal
Casing, 0C to +70C
SATA III CFast Card - aSLC
Metal Casing,
-40C to +85C
16GB SRCFA016G-PKCTMAS-(T) * WRCFA016G-PKCTMAS-(T)C *
32GB SRCFA032G-PKCTMAS-(T) * WRCFA032G-PKCTMAS-(T)C *
64GB SRCFA064G-PKCTMAS-(T) * WRCFA064G-PKCTMAS-(T)C *


*
T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






APRO Industrial Grade SATA III CFast Card

HERMES-J
series

Multi-level cell (MLC) NAND flash memory

[ Specification ]   [ Datasheet ]


APRO
HERMES-J series MLC industrial SATA III CFast cards are available from 4GB to 256GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).


Part Number List


Capacity SATA III CFast Card - MLC
Plastic Casing, 0C to +70C
SATA III CFast Card - MLC
Plastic Casing,
-40C to +85C
4GB SPCFA004G-JJCTMB-(T) * WPCFA004G-JJCTMB-(T)C *
8GB SPCFA008G-JJCTMB-(T) * WPCFA008G-JJCTMB-(T)C *
16GB SPCFA016G-JJCTMB-(T) * WPCFA016G-JJCTMB-(T)C *
32GB SPCFA032G-JJCTMB-(T) * WPCFA032G-JJCTMB-(T)C *
64GB SPCFA064G-JJCTMB-(T) * WPCFA064G-JJCTMB-(T)C *
128GB SPCFA128G-JJCTMB-(T) * WPCFA128G-JJCTMB-(T)C *
256GB SPCFA256G-JJCTMB-(T) * WPCFA256G-JJCTMB-(T)C *

Capacity SATA III CFast Card - MLC
Metal
Casing, 0C to +70C
SATA III CFast Card - MLC
Metal Casing,
-40C to +85C
4GB SRCFA004G-JJCTMB-(T) * WRCFA004G-JJCTMB-(T)C *
8GB SRCFA008G-JJCTMB-(T) * WRCFA008G-JJCTMB-(T)C *
16GB SRCFA016G-JJCTMB-(T) * WRCFA016G-JJCTMB-(T)C *
32GB SRCFA032G-JJCTMB-(T) * WRCFA032G-JJCTMB-(T)C *
64GB SRCFA064G-JJCTMB-(T) * WRCFA064G-JJCTMB-(T)C *
128GB SRCFA128G-JJCTMB-(T) * WRCFA128G-JJCTMB-(T)C *
256GB SRCFA256G-JJCTMB-(T) * WRCFA256G-JJCTMB-(T)C *


*
T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






APRO Industrial Grade SATA III CFast Card

MUSE
-D series

Multi-level cell (MLC) NAND flash memory

[ Specification ]   [ Datasheet ]


APRO
MUSE-D series MLC industrial SATA III CFast cards are available from 8GB to 256GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).


Part Number List


Capacity SATA III CFast Card - MLC
Plastic Casing, 0C to +70C
SATA III CFast Card - MLC
Plastic Casing,
-40C to +85C
8GB SPCFA008G-VDCTM-(T) * WPCFA008G-VDCTM-(T)C *
16GB SPCFA016G-VDCTM-(T) * WPCFA016G-VDCTM-(T)C *
32GB SPCFA032G-VDCTM-(T) * WPCFA032G-VDCTM-(T)C *
64GB SPCFA064G-VDCTM-(T) * WPCFA064G-VDCTM-(T)C *
128GB SPCFA128G-VDCTM-(T) * WPCFA128G-VDCTM-(T)C *
256GB SPCFA256G-VDCTM-(T) * WPCFA256G-VDCTM-(T)C *

Capacity SATA III CFast Card - MLC
Metal Casing, 0C to +70C
SATA III CFast Card - MLC
Metal Casing,
-40C to +85C
8GB SRCFA008G-VDCTM-(T) * WRCFA008G-VDCTM-(T)C *
16GB SRCFA016G-VDCTM-(T) * WRCFA016G-VDCTM-(T)C *
32GB SRCFA032G-VDCTM-(T) * WRCFA032G-VDCTM-(T)C *
64GB SRCFA064G-VDCTM-(T) * WRCFA064G-VDCTM-(T)C *
128GB SRCFA128G-VDCTM-(T) * WRCFA128G-VDCTM-(T)C *
256GB SRCFA256G-VDCTM-(T) * WRCFA256G-VDCTM-(T)C *


*
T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






APRO Industrial Grade SATA III CFast Card

PHANES-K
series

Multi-level cell (MLC) NAND type flash memory

[ Specification ]   [ Datasheet ]


APRO
PHANES-K series MLC industrial SATA III CFast cards are available from 32GB to 128GB and in standard temperature grade (0C to +70C) or industrial extended temperature grade (-40C to +85C).


Part Number List


Capacity SATA III CFast Card - MLC
Plastic Casing, 0C to +70C
SATA III CFast Card - MLC
Plastic Casing,
-40C to +85C
32GB SPCFA032G-PKCTM-(T) * WPCFA032G-PKCTM-(T)C *
64GB SPCFA064G-PKCTM-(T) * WPCFA064G-PKCTM-(T)C *
128GB SPCFA128G-PKCTM-(T) * WPCFA128G-PKCTM-(T)C *

Capacity SATA III CFast Card - MLC
Metal
Casing, 0C to +70C
SATA III CFast Card - MLC
Metal Casing,
-40C to +85C
32GB SRCFA032G-PKCTM-(T) * WRCFA032G-PKCTM-(T)C *
64GB SRCFA064G-PKCTM-(T) * WRCFA064G-PKCTM-(T)C *
128GB SRCFA128G-PKCTM-(T) * WRCFA128G-PKCTM-(T)C *


*
T: Thermal Sensor (optional)

C: Conformal coating (optional)



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.

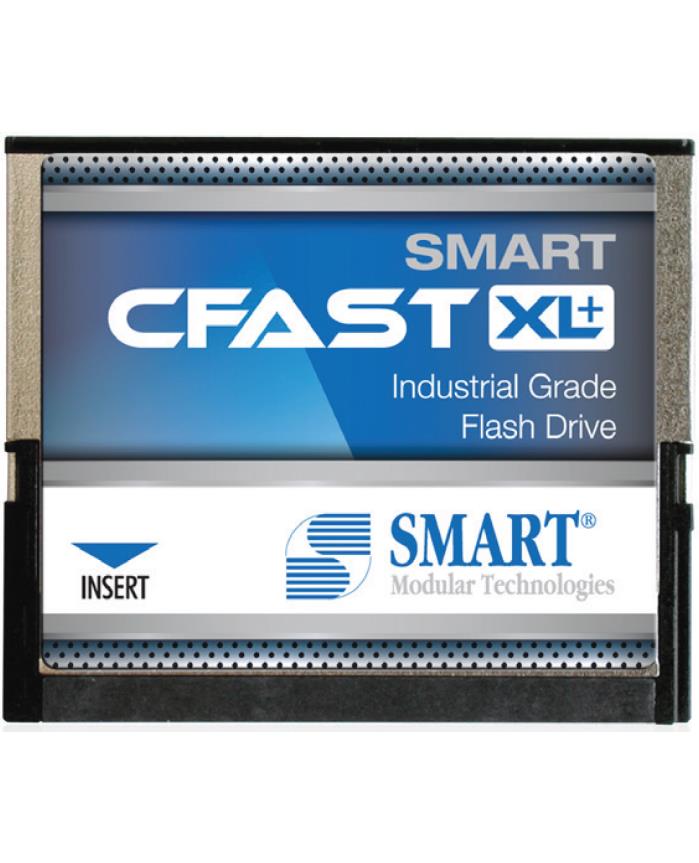

SMART Modular Industrial Grade CFast Card

SLC NAND Flash

CFast Card XL Plus (XL+)  Product Overview


EOL


Capacity 0C to +70C -40C to +85C
2GB SG9CFF32GAS02 SG9CFF32GASI02
4GB SG9CFF34GAS02 SG9CFF34GASI02
8GB SG9CFF38GAS02 SG9CFF38GASI02
16GB SG9CFF316GAS02 SG9CFF316GASI02
32GB SG9CFF332GAS02 SG9CFF332GASI02




Support & Warranty

 Free technical support and warranty are provided by Amtron Technology and the respective manufacturers.



industrial grade PCMCIA ATA Flash card Industrial grade IDE DOM
industrial grade PCMCIA Linear Flash card Industrial grade SATA DOM
industrial grade PCMCIA SRAM card Industrial grade mSATA SSD
industrial grade CompactFlash card (CF card) Industrial grade mSATA mini SSD
industrial grade CFast card Industrial grade slim SATA SSD
industrial grade CFexpress card Industrial grade M.2 SATA SSD
industrial grade M.2 SSD Industrial grade M.2 PCIe SSD
industrial grade U.2 SSD industrial grade microSD card
industrial grade Secure Digital (SD) card Industrial grade eMMC
industrial grade USB Flash Drive Industrial grade eUSB Flash Drive
industrial grade 2.5" PATA SSD Industrial grade PCIe Add-in Card
Industrial grade 1.8" SATA SSD Industrial grade DRAM Module - DDR3
Industrial grade 2.5" SATA SSD Industrial grade DRAM Module - DDR4



ATA Flash PC Card Linear Flash PC Card SRAM PC Card USB Flash Disk
Compact Flash Card CFast Card SD / SDHC Card microSD Card
CFexpress Card 1.8" SATA SSD 2.5" SATA SSD 2.5" PATA SSD
IDE DOM SATA DOM mSATA SSD mSATA mini SSD
slim SATA SSD PCIe Add-in Card eMMC eUSB Flash Drive
M.2 SATA SSD M.2 PCIe SSD DRAM Module - DDR3 DRAM Module - DDR4
U.2 SSD Memory Card Reader Memory Card Adapter M.2 SSD
PCMCIA Card Reader  (Front) PCMCIA CF I Adapter ExpressCard Reader  (Front) CF - SD/MMC Adapter
PCMCIA Card Reader  (Rear) PCMCIA CF II Adapter ExpressCard Reader  (Front) ExpressCard/34 - CF
PCMCIA Card Reader  (Rear) CardBus to ExpressCard ExpressCard Reader  (Rear) ExpressCard/54 - CF
PCMCIA Card Reader  (USB) ExpressCard to CardBus ExpressCard Reader  (USB) ExpressCard/34 - 12in1


Home | About Us | Product | Place Order | Shipping | Support | Return Policy

Copyright 1997-2021 Amtron Technology, Inc.
PO Box 884

Monterey Park, CA 91754 USA
Tel: (323) 265-8076
Fax: (323) 488-9747
https://www.amtron.com








PCMCIA ATA Flash Card
Industrial Grade





PCMCIA SRAM PC Card
Industrial Grade



CompactFlash Card
Industrial Grade



CFast Card
Industrial Grade



CFexpress Card
Industrial Grade



USB Flash Drive
Industrial Grade



SD Card
Industrial Grade



microSD Card
Industrial Grade



1.8" SATA SSD
Industrial Grade



2.5" SATA SSD
Industrial Grade



2.5" PATA SSD
Industrial Grade



IDE DOM
Industrial Grade



SATA DOM
Industrial Grade



mSATA SSD
Industrial Grade



mSATA mini SSD
Industrial Grade



Slim SATA SSD
Industrial Grade



M.2 SATA SSD
Industrial Grade



M.2 PCIe SSD
Industrial Grade



U.2 PCIe SSD
Industrial Grade



eUSB Flash Drive
Industrial Grade



eMMC
Industrial Grade



DRAM Module - DDR3
Industrial Grade



DRAM Module - DDR4
Industrial Grade



PCIe Add-in Card
Industrial Grade



M.2 SSD
Industrial Grade
